Details and Specs

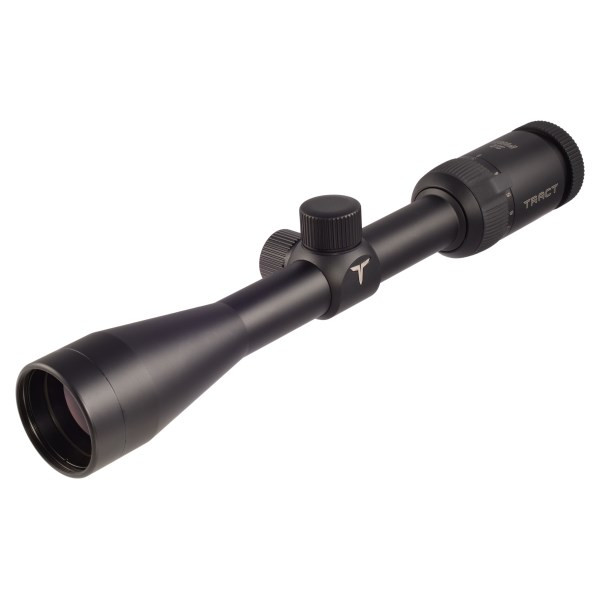

This 3-9x40 22 FIRE scope has the optical qualities of a high-powered centerfire rifle scope though it’s specifically designed for the rimfire. For example, the parallax is set at 50 yards with 1/4" adjustments at 50 yards. Not to mention the T-Plex reticle that allows you to acquire targets and shoot more accurately.
The stage is set for performance and fun that only a rimfire topped with a 3-9x40 22 FIRE can provide. Customize your 3-9x40 22 FIRE rimfire rifle scope with an Impact Custom Turret allowing you to dial in the distance for long range shooting.
Discover top-quality Rifle Scopes Binoculars Precision Gear Designed for hunters, shooters, and outdoor enthusiasts seeking precision and clarity. Visit our blog!
Magnification
3-9X
Objective Lens Diameter
40mm
Eye Relief (inches)
3.5 / 3.5
Exit Pupil
4.2mm
Exit Pupil (millimeters)
13.3 / 4.4
Field of View (@1,000 yards)
341 feet
Field of View (Low Power/High Power in feet @ 100 yards)
33.7 / 13.3
Relative Brightness
19.75
Twilight Factor
18.97
Diopter Range
+/- 3
Length (inches)
12.2
Weight (ounces)
15.2
Internal Adjustment Range (MOA)
80
Click Value (MOA)
.25 at 50 yards
Tube Diameter
1 inch (two piece)
Reticle Type
Electro-formed Copper Wire
Coatings
Fully Multi-coated
Recoil Shock Endurance
1,000g
Internal Charge
Argon Gas
Parallax Setting
50 yards
Finish
Black Matte
Reticle Focal Plane
2nd
Eyepiece Outside Diameter
1.74 inches
Objective Outside Diameter
1.8 inches
Objective Diameter (millimeters)
40
Mount Space
5.4 inches
Waterproof Depth (meters)
3
Butler Creek Flip Up Cover Objective Size
25 (not included)
Butler Creek Flip Up Cover Eyepiece Size
19 (not included)
Temperature Operating Range
158°F to -1.4°F
Country of Origin
Philippines
